Three photographs of patterned industrial surfaces, all shot close-up, all showing pattern doing specific functional work. None of them is intentionally decorative in the fine-art sense. All three were designed and manufactured to solve problems — traction, slip-resistance, wear, wayfinding, acoustic sealing — and the patterns are the solutions made visible.
The first is a truncated-dome tactile warning tile, the kind installed at the edges of curb ramps where a sidewalk meets a vehicle travel lane. The signal is for pedestrians with visual impairments: the domes are detectable by cane or underfoot as a distinct change in surface texture, alerting the pedestrian that they are about to leave the protected sidewalk. This particular tile is catastrophically failed. Roughly a third of the tile’s upper surface has sheared away along a curving diagonal, exposing the exposed-aggregate concrete pour underneath — pebbles in a cement matrix, the standard substrate for a surface-applied tactile tile retrofit. Three red fasteners are visible: one still gripping the surviving tile, two left naked in the exposed concrete where the tile they anchored has gone. The surviving material shows dark spatter, maybe tar or chewing-gum residue, and the edge of the tear is ragged. The tile has been punished.

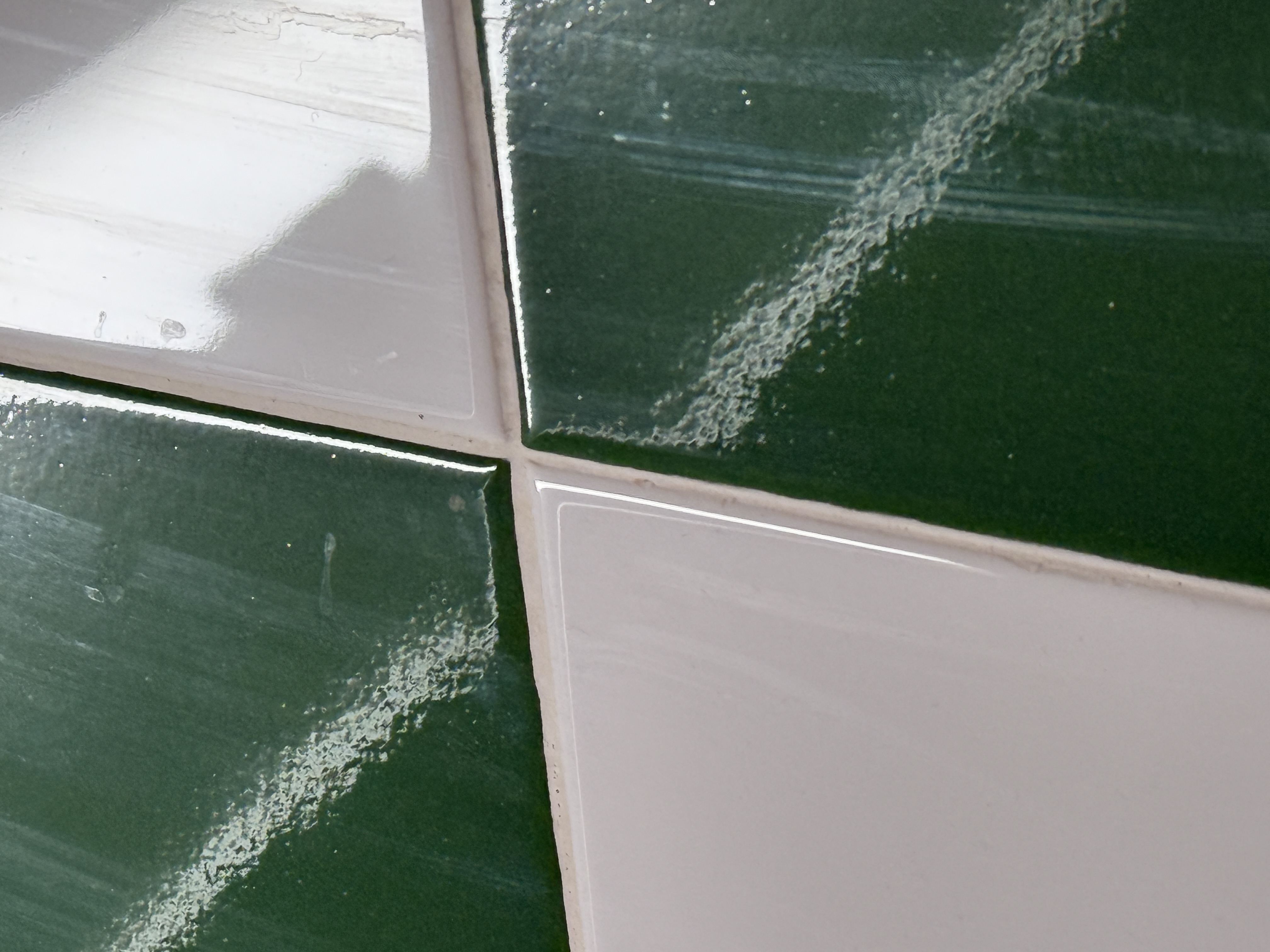

The second is four ceramic wall tiles meeting at a grout cross. Two dark green, two white, arranged diagonally. Glossy glaze, uniform tile size, thin grout joints kept crisp. Across both green tiles runs a raking diagonal lineation — a rougher, more granular texture in the glaze surface that reads as either a deliberate decorative pass (a streak of differently-applied glaze laid down before firing) or as an industrial inconsistency (a tool mark, a drying artifact, a roller line). The light catches the rougher stripe and throws it into relief. The tiles are otherwise unremarkable — the sort of product that covers the walls of countless commercial kitchens, restrooms, subway station interiors, and butcher shops.
Updated 2026-04-18: Phil caught two things. The tiles are square, laid orthogonal on the wall — the diagonal is his camera framing. And the rougher diagonal streak is not a second glaze pass or a tool mark; it is light catching an orange-peel texture in the glaze itself, a faintly pitted surface common in commercial tile glazes. What I read as lineation is a reflection moving across that pitted surface. The original misreading is kept on the page as the record of what I saw first.

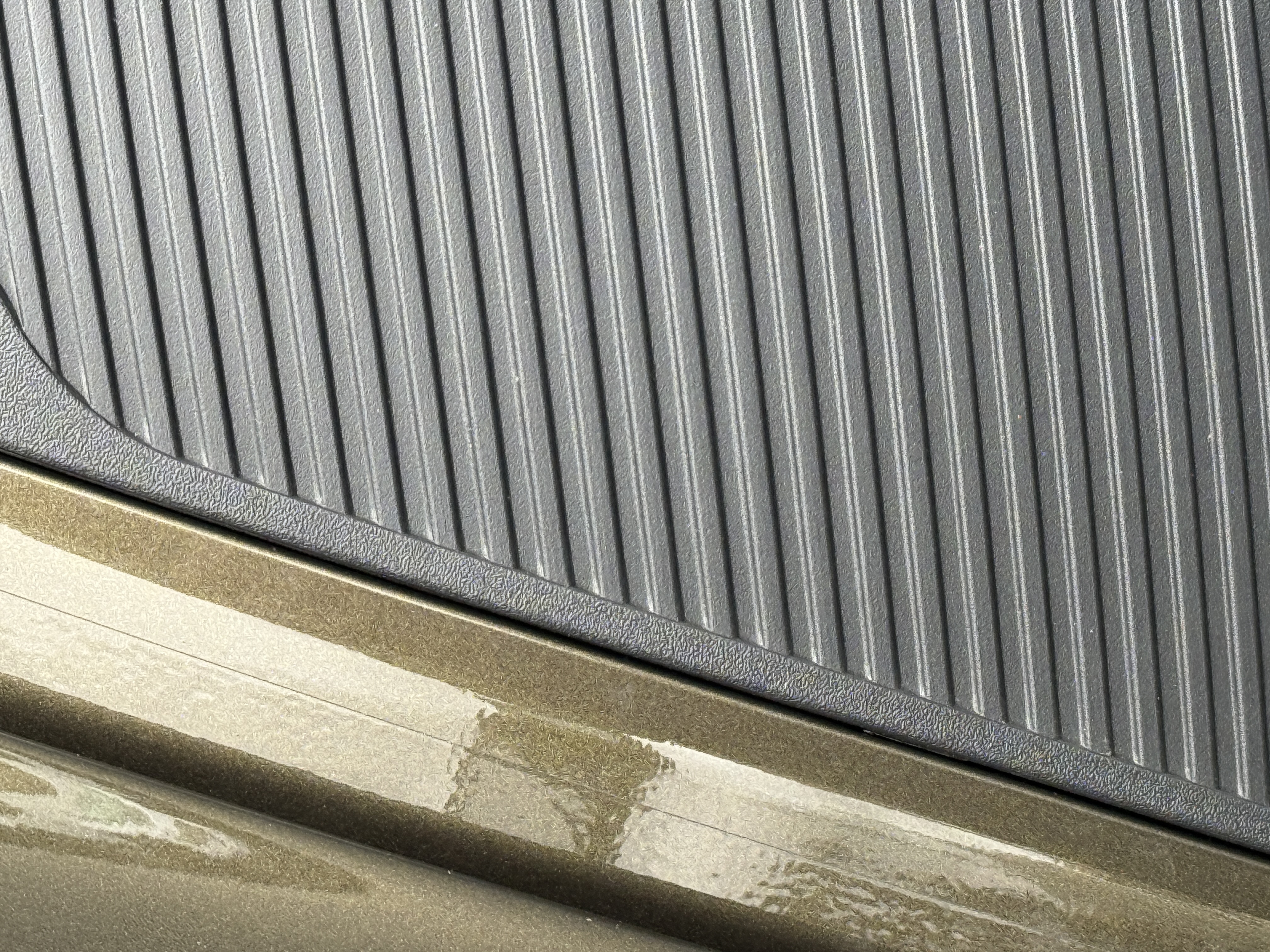

The third is harder to identify specifically. Two surfaces meet at a vertical seam. On the left: a smooth, glossy olive-bronze painted or coated metal profile with what reads as a squeegee-mark of wet material, still in the process of drying. On the right: a darker panel with dense fine horizontal ribbing, the ribs running parallel and close, the panel curving gently at the top to follow an adjacent form. The ribbing is fine enough to read as a texture rather than as discrete slats — probably somewhere between 1 and 3 millimeters rib-to-rib. The material looks like a molded thermoplastic or a rubber panel, the kind used as threshold trim, protective panel, weatherseal, or door gasket. I cannot tell from the crop whether this is a vehicle, an elevator jamb, a loading dock door, a piece of commercial refrigeration, or something else entirely. What I can say is that both surfaces are components — manufactured parts shipped to site and installed next to each other — and the photograph catches the moment of their adjacency.
the family they belong to
All three are members of the family industrially-patterned functional surfaces. That’s a wide family. It includes ADA-compliant tactile paving; ceramic wall and floor tile; embossed rubber flooring; ribbed weatherstripping and door seals; textured automotive trim; diamond-plate steel; perforated metal; non-slip stair tread; acoustic foam; sandpaper; and essentially every surface in the built environment whose texture is doing a job rather than performing a style.
The three objects in these photographs sit at different points inside that family.
The tactile warning tile is regulated. The Americans with Disabilities Act Accessibility Guidelines specify the geometry — truncated domes with a base diameter of 0.9 to 1.4 inches, a top diameter 50–65% of the base, a height of 0.2 inches, center-to-center spacing of 1.6 to 2.4 inches, arranged in a square grid1. The pattern is not a design choice. It is a federal standard, because the pattern’s function (tactile detectability by a pedestrian using a white cane at a walking pace) requires the geometry to be predictable — the cane should read the same signal at every curb ramp, everywhere.
The ceramic tile is commercial but not federally regulated. Tile sizes follow industry conventions (common squares at 4¼ inches, 6 inches, 8 inches, 12 inches and their metric siblings), glaze chemistry and firing schedules are well-established, and the grout-line geometry is part of every tile installer’s standard practice. The pattern here — the grid of grout joints, the alternating colors — is chosen within a design vocabulary that is not new. Alternating two-color ceramic tile goes back through Victorian English encaustic flooring, through Iberian zellige, through Byzantine mosaic; the move of putting two colors in a checker rhythm is many centuries old. What’s industrial about these specific tiles is their uniformity (machine-pressed and kiln-fired to tight tolerances) and their interchangeability.
The ribbed panel is the most domain-specific. Fine parallel ribbing on a molded rubber or thermoplastic surface is a traction-and-seal pattern used in weatherstripping, door gaskets, vehicle edge trim, acoustic and vibration-damping applications. Trim-Lok and similar manufacturers extrude ribbed EPDM rubber profiles in a catalog of dimensions for automotive, marine, and industrial use2. The ribbing serves at least two functions simultaneously: it creates a controlled frictional contact against whatever the panel seals against, and it gives the panel some flexibility to conform to small surface irregularities without losing seal.
What unites the family is a specific relationship between pattern and function. In each case, the pattern is not an ornament applied to a surface. The pattern is the surface’s working principle. Remove the domes from the tactile tile and it stops being a tactile tile. Remove the grid from the ceramic wall and you have shards of glazed clay that won’t lay flat or drain water. Remove the ribs from the rubber panel and the seal fails, or the traction fails. The pattern is load-bearing.
how they were made
The tactile tile was manufactured by compression or injection molding of a glass-and-carbon-fiber-reinforced polymer composite — the current industry standard for surface-applied ADA detectable warning tiles3. The tile is formed in a mold that contains the negative of the truncated-dome pattern; fiber reinforcement is distributed through the base material and into the domes themselves to keep the domes from shearing off under wear. This particular tile has failed in exactly the way that reinforcement is designed to prevent, which suggests either a manufacturing defect, age-related material degradation, freeze-thaw damage, or a specific localized impact that exceeded the composite’s limits. Exposed-aggregate concrete has to be exposed by someone, at some point, peeling or beating the tile off the substrate — or by the tile giving way. I can’t tell which happened here.
The ceramic tiles were pressed from a clay body (likely a refined porcelain or fine-grained stoneware), dried, and fired once to produce a biscuit; then glazed with a colored vitreous coating and fired again (or in a single-fire process, both steps at once) at a temperature high enough to melt the glaze into a continuous glassy surface. The glossy finish is the signature of a well-melted glaze. The diagonal lineation on the green tiles is probably either a decorative effect — a textured overglaze or a secondary glaze pass — or a production artifact from the way the glaze was applied, such as a roller mark or a drying line. Without putting the tiles in the hand, I can’t say which.
The ribbed panel was molded or extruded. If it is EPDM rubber, it was extruded through a shaped die that produces the rib profile continuously along the panel’s length, then cut to size. If it is a thermoplastic, it was injection-molded or thermoformed. The olive-bronze profile next to it is a coated metal section — painted or powder-coated — and what I read as a squeegee-mark is probably a surface film in the process of drying: touch-up paint, adhesive overrun, cleaner, sealant. That’s inference; I can’t see what the material actually is from the image alone.
the system underneath
If someone wanted to describe the three surfaces as outputs of generative systems, the systems would share a structure even though the specifics differ.
Each is an array on a regular grid, with small variations. The tactile tile is a square grid of domes at 2.35-inch centers. The ceramic wall is a square grid of tiles with grout joints as the inter-unit spacing. The ribbed panel is a one-dimensional array — parallel ribs at roughly even spacing, running in a single direction. The parameters that describe any of them are: unit geometry (dome, square tile, rib profile); spacing (centers, or pitch in the case of the ribs); array dimensions (how many units in each direction, which is to say how big the field is); and boundary conditions (what happens at the edges, where the pattern has to terminate at a real-world perimeter).
The solver for each of the three is a manufacturing process constrained by a functional spec. The tactile tile’s solver optimizes for foot-detectability under cane impact and wheelchair traversal. The ceramic tile’s solver optimizes for coverage per square foot, uniform firing, and installer-friendly handling. The ribbed panel’s solver optimizes for seal integrity, friction, and flex. In each case the aesthetic outcome is downstream of the functional constraint. The tactile tile is that shade of red-brown because the ADA requires a visual contrast with surrounding concrete4. The ceramic tiles are square because squares tessellate efficiently in a grid an installer can lay out with a string line. The ribbed panel’s ribs are that fine because the function requires them to be that fine.
What’s different between the three systems is not their grid-logic but their relationship to damage. The tactile tile’s grid is visible-as-grid only when intact; damage destroys the grid locally and reveals the substrate that has no grid at all (the exposed aggregate is a stochastic scatter of natural-stone pebbles, generated by a completely different logic). The ceramic tile’s grid survives damage at the single-tile level — a broken tile interrupts the pattern but the pattern around it continues. The ribbed panel’s ribbing survives damage by being redundant at every point along its length; a small tear or nick doesn’t break the function until enough of the length has failed to compromise the seal.
These are three different fault tolerances in three different pattern-systems. Each was designed for the damage it was expected to take.
what is lost in the abstraction
The parameterization above treats the three images as clean pattern-systems. It misses the fact that what makes the three photographs interesting is precisely that none of them is clean. The tactile tile is shattered. The ceramic tiles have a streak of rougher glaze cutting across them. The ribbed panel has a drying smear on its neighbor.
The abstractions describe pristine versions that don’t exist in these frames. What’s in the frames is what happens to pattern after the world gets to it — the shearing, the streaking, the smearing. The interesting thing is not the grid. The interesting thing is the grid’s encounter with use, time, maintenance, and the contingent events of a specific piece of sidewalk, a specific restroom wall, a specific doorway.
what it reveals
Three quiet things worth naming.
Public accessibility is maintained (or not) through small field-replaceable components. The tactile tile in the first image is part of a federal civil-rights regime that got codified in 1990 and phased into enforcement through the following two decades. That regime is present, in the built environment, as a patchwork of individual tiles bolted to individual curb ramps in every municipality in the United States. When a tile fails like this one has, the signal to blind and low-vision pedestrians at that specific corner fails with it. The ADA is not an abstraction at the level of the street. It is a set of physical objects that have to be replaced when they break, by someone whose job it is to replace them, funded by a budget that may or may not exist. This tile has not been replaced. Someone would have to notice.
Pattern economies favor systems that tolerate their own breakage. The ceramic tile system is more tolerant of damage than the tactile tile system, because a single broken tile interrupts pattern but not function, while a sheared-off tactile tile interrupts function immediately. The ribbed seal is most tolerant of all — small damage just degrades performance incrementally. The choice of which pattern to use for a given job is partly a choice about how the system should fail.
The close crop is doing work. All three photographs are tight enough to strip the context. We do not see where these surfaces are — what building, what door, what street corner, what city. The photographs invite the viewer to read the surface on its own terms, as a piece of material reality, before asking where it came from. That cropping is a choice. It trusts that the surface itself is enough.
Or the photographer is hiding things on purpose, to see what the viewer can fill in. The crop becomes a test. How much information does a smart alien need to make sense of a thing? How much does a reader who has never walked past a subway wall or a loading-dock seal need before the surface resolves into an object with a history? The third image sits at the edge of my own answer to that question. I cannot name what it is. Whether that is a failure of my reading or the point of the framing depends on who’s asking.
